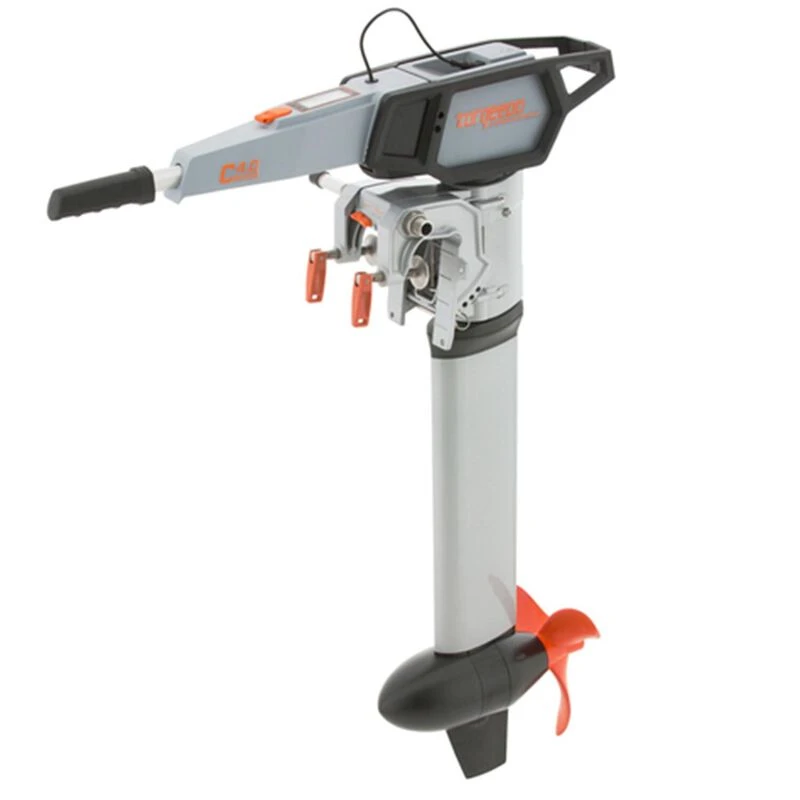

TORQEEDO Outboard Motors Cruise 4.0T Electric Outboard, Short Shaft, Tiller Steering

Clean, reliable and quiet replacement for that tired old gas outboard.

The lightest, most powerful and most efficient electric outboards available, the Torqeedo Cruise 4.0 is the leading electric solution for pontoon boats, sailboats, small boats, commercial operations and users on lakes that limit the use of combustion motors.

Due to the use of a highly efficient rare earth magnet torque motor, electronics and gear package, Torqeedo Cruise models deliver up to twice the range from the same battery supply compared to other popular electric motors with high-tech features such as GPS-based range calculation, up-to-the-minute accurate battery status and speed calculations and its ability to work with cool accessories like Torqeedo’s smartphone app, TorqTrac.

Solid aluminum lower unit provides improved protection from impact damage, corrosion, fishing lines and debris. The Cruise 4.0 delivers the propulsive power of a 8hp and the thrust of a 9.9hp combustion outboard. Tiller steering – short shaft.

Key Features

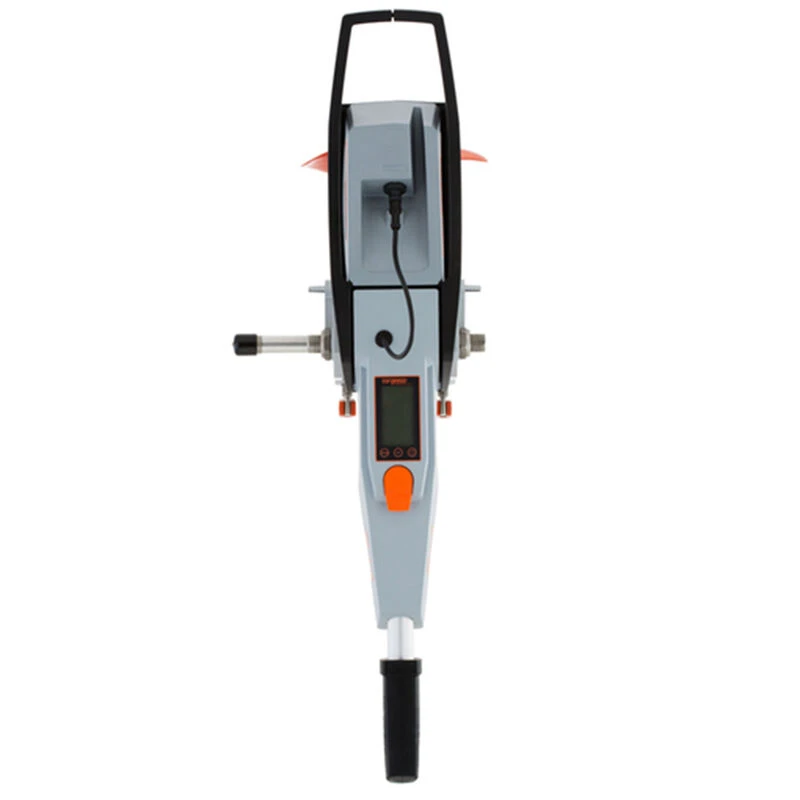

• Onboard computer with GPS: All models have a GPS onboard computer and display in the tiller with real-time display of speed and input power – and the exact battery status and remaining range when used in combination with the Power 26-104 lithium battery
• Submersible Waterproof Rating: Housing and all plug connections waterproof to IP67 standards
• Rugged Design: Extra robust design, with lubricant-free polymer plain bearing that protects against damage from debris and is wear-resistant and maintenance-free
• Aluminum Pylon: Stable pylon made from marine grade anodized aluminum and with an extra-reinforced fin, suitable for the toughest conditions

Specifications

• Input Power in Watts: 4,000W
• Propulsive Power in Watts: 2,240W
• Equivalent Gas Outboard: 8hp equivalent propulsive power; 9.9hp equivalent thrust
• Static Thrust in Pounds: 189lb.
• Max. Propeller Speed: 1,300rpm
• Volts: 48V
• Battery: External (sold separately)
• Shaft Length: 24 3/8”L
• Weight: 35.42lb.
• Steering Type: Tiller, 360° lockable
• Gearing: F-R continuously variable
• Trim: Manual, 4-step
• Tilt Angle: 61.3°
• Warranty: Two years limited

Operating Range

Cruise 4.0 with two Power 26-104 Battery or four 12V AGM Batteries (48V) totaling 200Ah

	Speed in knots (km/h)*	Range in statute miles (km)*	Running time in hours:
Slow	2.7 (5.0)	29 (54)	10:45
Full throttle	7.0 (13)	8 (15)	1:10

*Depends on type of boat, load, propeller and conditions.

What’s Included

• Cruise 4.0T
• Integrated onboard computer with GPS and display
• fuse and main switch
• emergency magnetic stop
• 25 mm2 cable set (3m)
• battery cable bridge for lead batteries
• tiller control
