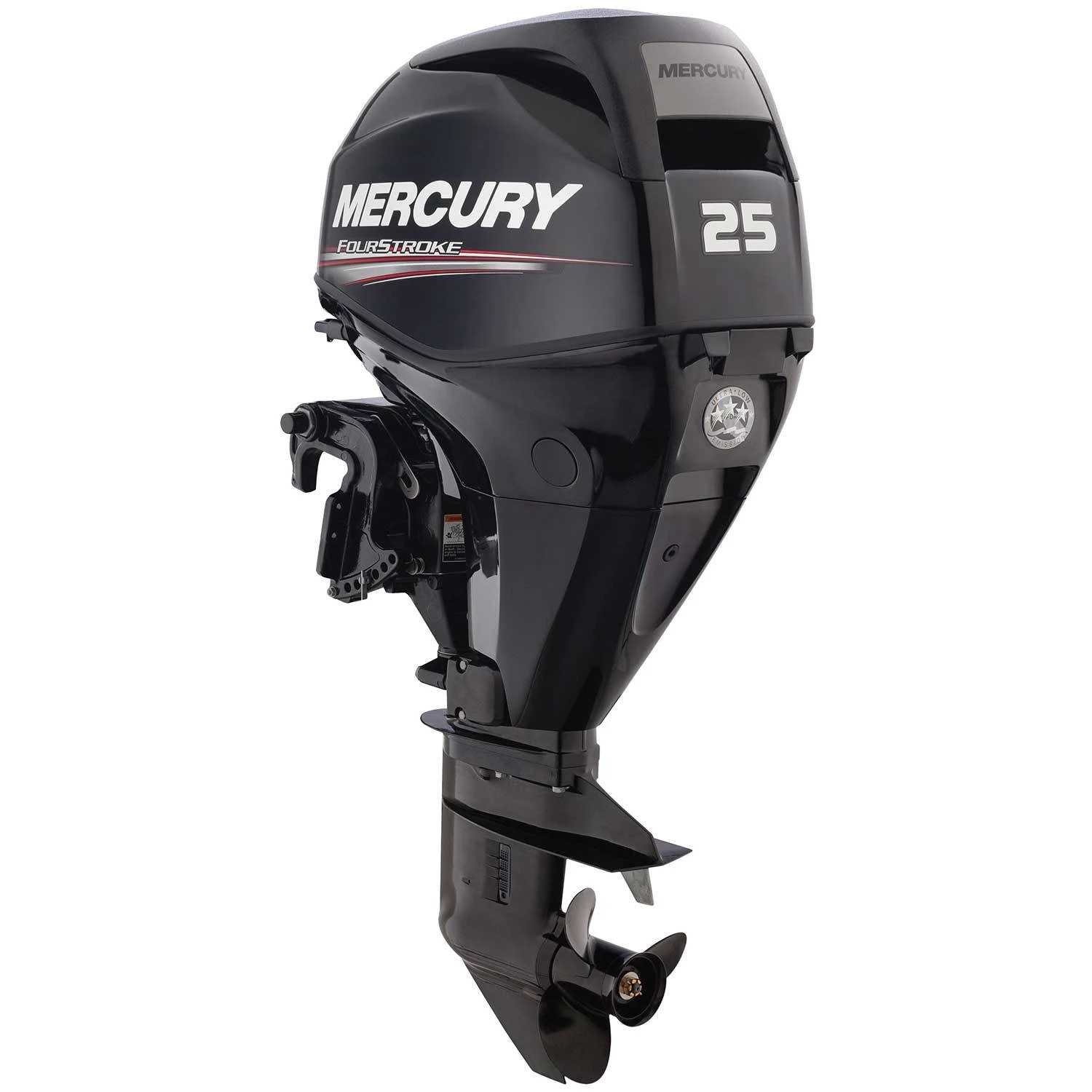

MERCURY MARINE Outboard Motors 25hp Electric Start 4-Stroke Outboard, 20″ Shaft, Remote Steering

Compact but powerful, Mercury® FourStroke 25hp outboards feature extra displacement and great low-end torque to put boats smartly on plane.

The inherent 4-stroke characteristics of ultra-quiet, smoke-free operation, plus smooth idling and running make this engine a natural choice whether you’re trolling for fish or out just for fun. It has a California Air Resources Board (CARB) three-star, ultra-low emissions rating, making it one of the cleanest running engines on the market. It utilizes a three-cylinder engine design, delivering superior balance performance over twin-cylinder designs.

Lightweight, compact and powerful the engine offers extra displacement and great low-end torque to put your boat smartly on plane. The engine protection operator warning system includes low oil pressure, over-rev, overheat and sensor failure. A high output 15amp alternator gives constant battery charging. Battery-free electronic fuel injection delivers easy-starting, crisp throttle response and increased fuel economy.

The multi-tiller handle offers one handed shifting, throttle controls, steering and power trim and tilt.

Propeller pictured not included

Key Features

• Lightest motor in its class; compact and powerful
• Utilizes a three-cylinder engine design, delivering superior balance performance over twin-cylinder designs
• Offers extra displacement and great low-end torque, putting the boat smartly on plane
• Remote steering
• Power trim
• High output 15amp alternator for constant battery charging
• Battery-free electronic fuel injection delivers easy-starting, crisp throttle response and increased fuel economy
• Engine protection operator warning system including: low oil pressure, over-rev, overheat and sensor failure
• CARB three-star, ultra-low emissions rating
• Three year warranty
• PROPELLER NOT INCLUDED

Specifications

• Engine Type: 4-stroke Inline 3
• Horsepower: 25hp
• Start: Electric (turn-key)
• Ignition: CDI with electronic spark advance
• Fuel System: Electronic fuel injection
• Cooling System: Water-cooled with thermostat
• Steering: Remote
• Displacement (CID/CC): 32.1/526
• Full Throttle RPM: 5,250-6,250
• Fuel Induction System: Two valves per cylinder, single overhead cam (SOHC)
• Alternator Amps/Watts: 15amp/185watt
• Weight: 181lb.
• CARB Star Rating: 3
• Bore and Stroke: 2.40” x 2.36”
• Shaft Length: 20”
• Gearing: F-N-R, 1.92:1
• Gearcase Options: Standard
• Trim System: Gas assist power trim
• Exhaust System: Through prop
• Tank Type: Remote fuel tank
• Tank Capacity: 6.6gal.
• Shallow Water Trim Range: 16 degrees
